The Frigomar SCU07VFDHE-48 delivers 7000BTU cooling and heating for 48V DC systems with high efficiency, consuming 440 W at 9.2 A max, and includes detailed seawater flow and air exit specifications.
- Description
- Ask a Question
-

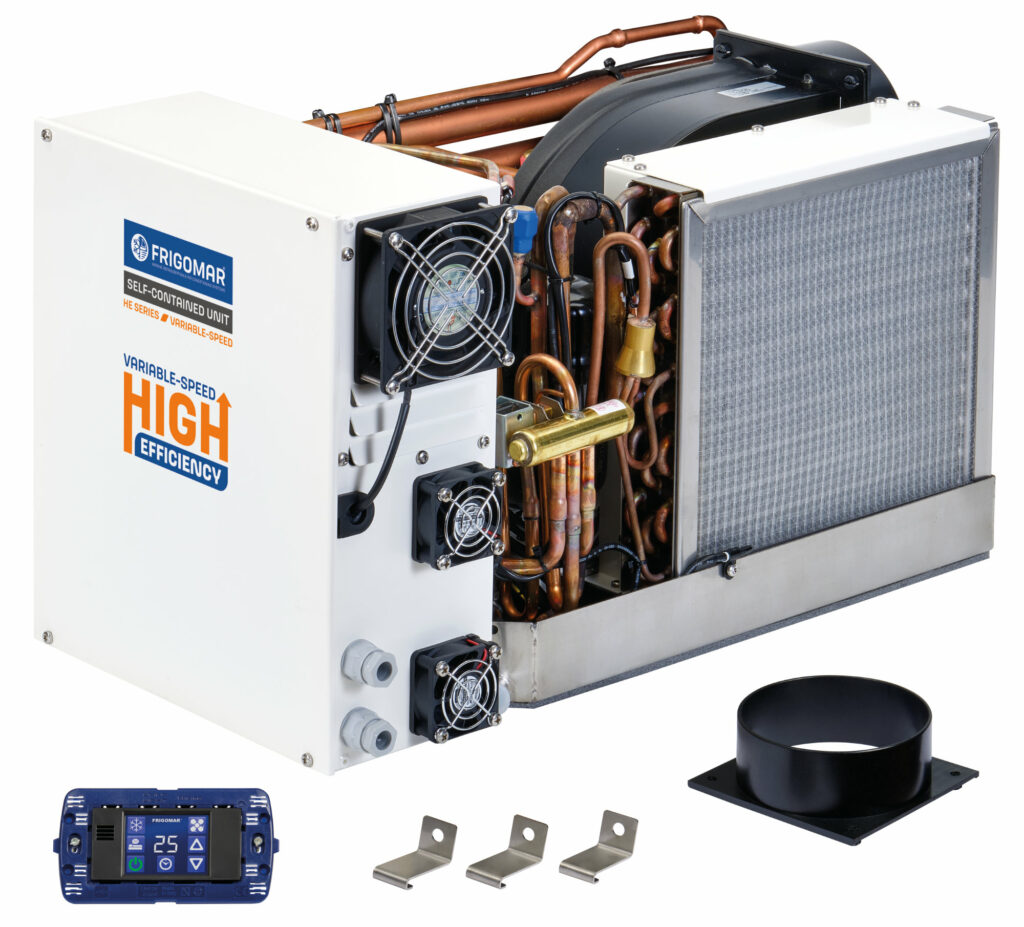

Frigomar SCU07VFDHE-48 - Self Contained Unit 7000BTU 48VDC High Efficiency
The SCU07VFDHE-48 provides efficient cooling and heating with low energy consumption, designed for 48VDC systems.
- Article number: SCU07VFDHE-48
- Width: 433 mm
- Height: 282 mm
- Depth: 260 mm
- Weight (including electrical panel): 24,5 kg
- Electrical panel dimensions: 275 x 321,5 x 126 mm
- Voltage / phase / frequency: 48 V
- Maximum cooling/heating capacity: 7.000 BTU/h
- Maximum input power: 440 W
- Maximum current: 9,2 A
- Cooling capacity ECO mode*: 3.000 BTU/h
- Input power ECO mode*: 155 W
- Max seawater flow-pressure drop**: 1,0 m3/h - 3,4 m H2O
- Min seawater flow-pressure drop**: 0,8 m3/h - 2,2 m H2O
- Air exit duct diameter: 120 mm
- R410A refrigerant gas: 0,390 kg
-
