SKU:
BP SCU07VFDHE-24
$ 9.048,72
1-2 weeks delivery time
-
+
The Frigomar SCU07VFDHE-24 is a compact, high-efficiency 7000BTU self-contained unit designed for 24V DC systems, featuring 440 W max input power, 18.3 A current, and precise seawater flow and air duct specifications.
- Description
- Ask a Question
-

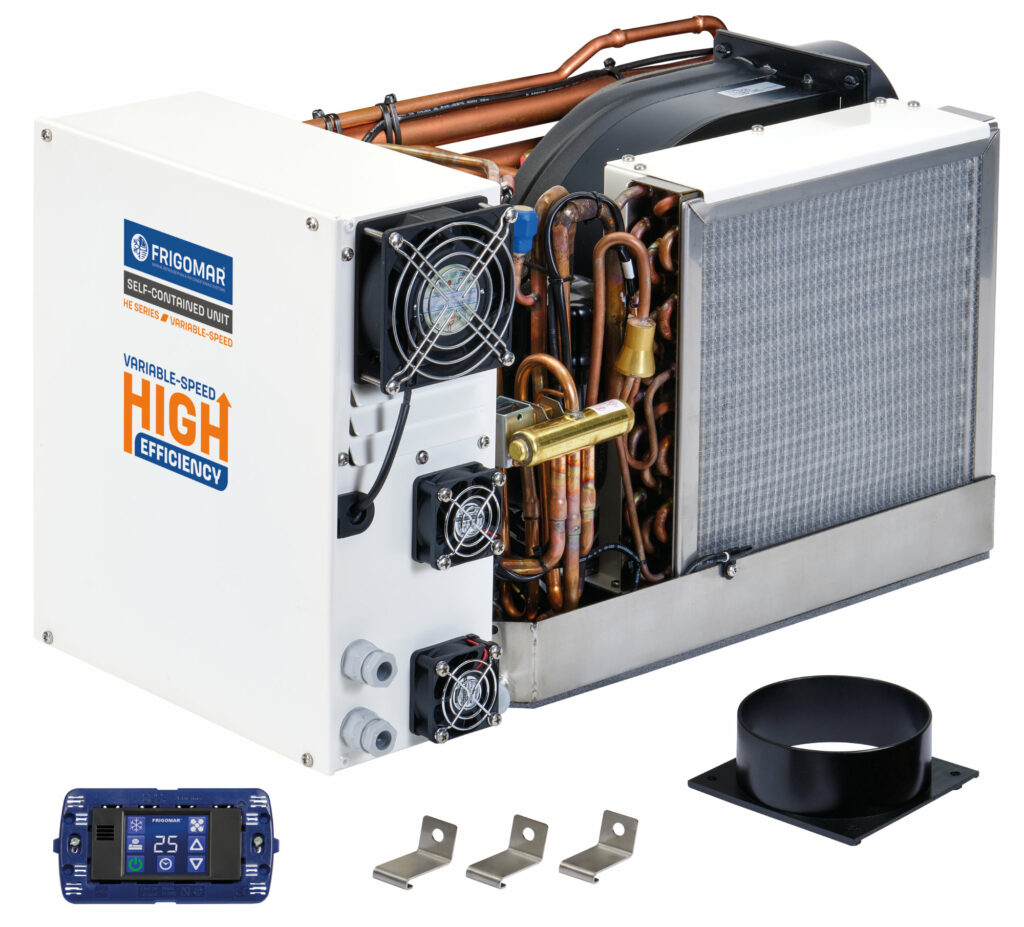

Frigomar SCU07VFDHE-24 - Self Contained Unit 7000BTU 24VDC High Efficiency
Experience reliable and compact climate control with the SCU07VFDHE-24, engineered for high efficiency in demanding environments.
- Article number: SCU07VFDHE-24
- Packaging unit: Piece
- Width: 433 mm
- Height: 282 mm
- Depth: 260 mm
- Weight (including electrical panel): 24,5 kg
- Electrical panel dimensions: 275 x 321,5 x 126 mm
- Voltage / phase / frequency: 24 V
- Maximum cooling/heating capacity: 7.000 BTU/h
- Maximum input power: 440 W
- Maximum current: 18,3 A
- Cooling capacity ECO mode*: 3.000 BTU/h
- Input power ECO mode*: 155 W
- Max seawater flow-pressure drop**: 1,0 m3/h - 3,4 m H2O
- Min seawater flow-pressure drop**: 0,8 m3/h - 2,2 m H2O
- Air exit duct diameter: 120 mm
- R410A refrigerant gas: 0,390 kg
-
