SKU:
BP 714T5060
$ 2.862,76
1-2 weeks delivery time
-
+
The Frigomar 714T5060 is a three-phase sea water pump for 230-400V, 50-60Hz operation, suitable for moderately dirty liquids in industrial and agricultural applications, with open-impeller design, cast iron or bronze construction, and item number 714T5060.
- Description
- Ask a Question
-

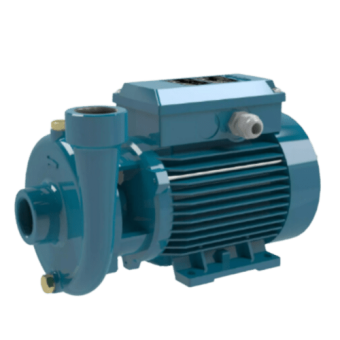

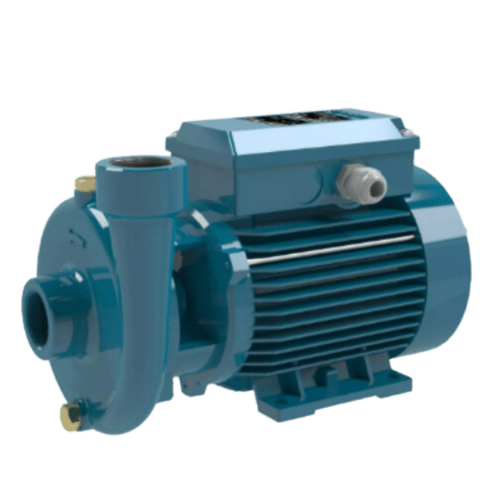

Frigomar 714T5060 - Sea Water Pump BC 41/1E-R 230-400V/3/50-60Hz
This sea water pump is designed for reliable operation in industrial and agricultural environments, handling moderately dirty liquids or emulsions efficiently.
- Construction: Close-coupled centrifugal pumps featuring open impellers. Type C 16/1E includes a free-flow (vortex or recessed) impeller. Versions available:
- C: Pump casing and lantern bracket in cast iron.
- B-C: Pump casing and lantern bracket in bronze. Pumps are fully painted.
- Applications: Suitable for moderately dirty liquids or emulsions, used in industry and agriculture.
- Operating conditions:
- Liquid temperature range: -10 °C to +90 °C
- Ambient temperature: up to 40 °C
- Total suction lift: up to 8 m
- Maximum permissible working pressure: 6 bar
- Maximum solid particle size: 4 mm
- Continuous duty (S3 60% for C(M) 22E-CM 22/1E)
- Motor:
- 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
- C: Three-phase 230/400 V ± 10%
- CM: Single-phase 230 V ± 10% with built-in thermal protector
- Capacitor inside terminal box
- Insulation class F
- Protection rating: IP 54
- Motor compatible with frequency converter from 1.1 kW
- Efficiency class: IE2 for single-phase, IE3 for three-phase (IE2 up to 0.65 kW)
- Compliant with: EN 60034-1; EN 60034-30-1; EN 60335-1; EN 60335-2-41
- Special features on request:
- Alternative voltages
- Frequency 60 Hz (refer to 60 Hz datasheet)
- Protection IP 55
- Special mechanical seals
- Higher or lower liquid or ambient temperatures
- Motor operation with frequency converter up to 0.75 kW
- Construction with bearing bracket
- Item number: 714T5060
- Construction: Close-coupled centrifugal pumps featuring open impellers. Type C 16/1E includes a free-flow (vortex or recessed) impeller. Versions available:
-
