SKU:
BP 713M5060
$ 2.234,15
1-2 weeks delivery time
-
+
The Frigomar 713M5060 is a close-coupled centrifugal single-phase pump for 220-240V, 50-60Hz operation, capable of handling moderately dirty liquids or emulsions, with cast iron or bronze construction, thermal protection, and item number 713M5060.
- Description
- Ask a Question
-

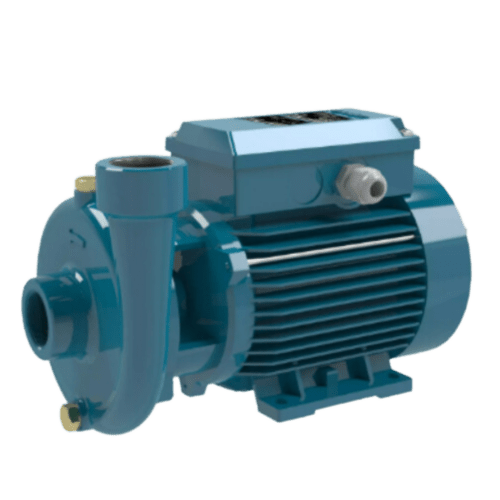

Frigomar 713M5060 - Sea Water Pump BCM 22/A-R 220-240V/1/50-60Hz
This close-coupled centrifugal pump is designed to handle moderately dirty liquids and emulsions, ideal for both industrial and agricultural applications. Available in cast iron or bronze construction, it ensures durability and reliability in demanding conditions.
- Impeller: Open, free-flow (vortex or recessed type C 16/1E).
- Construction options:
- C: Pump casing and lantern bracket in cast iron.
- B-C: Pump casing and lantern bracket in bronze.
- Applications: Moderately dirty liquids or emulsions in industry and agriculture.
- Operating conditions:
- Liquid temperature: -10 °C to +90 °C
- Ambient temperature: up to 40 °C
- Total suction lift: up to 8 m
- Maximum working pressure: 6 bar
- Maximum solid size: 4 mm
- Duty: Continuous (S3 60% for C(M) 22E-CM 22/1E)
- Motor specifications:
- 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
- C: Three-phase 230/400 V ±10%
- CM: Single-phase 230 V ±10% with thermal protector
- Capacitor inside the terminal box
- Insulation class F
- Protection: IP 54
- Compatible with frequency converter from 1.1 kW
- Efficiency class:
- Single-phase: IE2
- Three-phase: IE3 (IE2 up to 0.65 kW)
- Standards: EN 60034-1; EN 60034-30-1; EN 60335-1; EN 60335-2-41
- Optional features on request:
- Different voltages
- Frequency 60 Hz (per 60 Hz data sheet)
- Protection IP 55
- Special mechanical seal
- Higher or lower liquid/ambient temperatures
- Motor compatible with frequency converter up to 0.75 kW
- Construction with bearing bracket
- Item number: 713M5060
-
