$ 108,39
1-2 weeks delivery time
-
+
The Barton N17120 Size 7 Ball Bearing Pulley Block features a 70mm single sheave with a reverse shackle, glass fibre reinforced nylon side plates, and 316 stainless steel frame. It weighs 312 g, measures 165 × 77 × 48 mm, supports 14mm rope, and has a SWL of 1250kg with a break load of 2500kg.
- Description
- Ask a Question
-

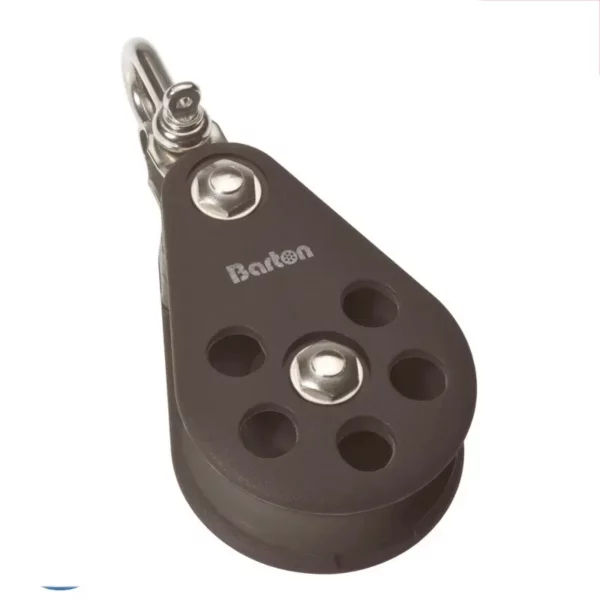

Barton N17120 - Size 7 70mm Ball Bearing Pulley Block Single Reverse Shackle
The size 7 block features a 70mm sheave with a single ball bearing assembly and reverse shackle. Its robust glass fibre reinforced nylon side plates and 316 stainless steel frame provide exceptional strength, making it ideal for high-load cruising and racing yachts.
- Weight: 312 g
- Dimensions: 165 × 77 × 48 mm
- Size: 7 (70mm)
- Block Type: Reverse Shackle
- No. of Sheaves: Single
- Bearing Type: Ball Bearing
- Sheave Size: 72mm x 20mm (2 53/64" x 3/4")
- Max rope diameter: 14mm (9/16")
- SWL: 1250kg (2750lbs)
- Break load: 2500kg (5500lbs)
- Max rolling load (ball bearing blocks): 875kg (1929lbs)
- Article number: 626697BZ
- Packaging unit: Piece
- Supplier article code: N17120
- EAN code: 5035088084050
-
