SKU:
BP 626775BZ
$ 98
1-2 weeks delivery time
-
+
The Barton N15220 Size 5 Double Ball Bearing Pulley Block features two 54mm sheaves for added lifting capacity, moulded side plates, and a 316 stainless steel frame. It weighs 243 g, measures 124 × 59 × 58 mm, supports 12mm rope, with a SWL of 750kg and break load of 1500kg.
- Description
- Ask a Question
-

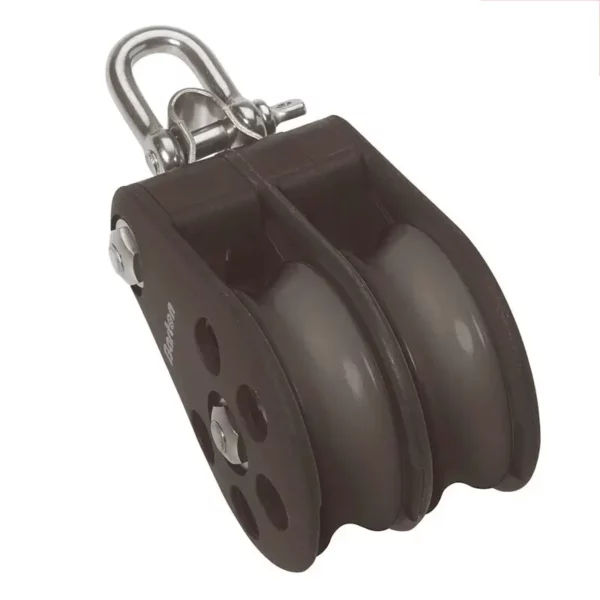

Barton N15220 - Size 5 54mm Ball Bearing Pulley Block Double Block
This double sheave block provides added lifting capacity and smooth ball bearing operation for larger sailing vessels.
- Weight: 243 g
- Dimensions: 124 × 59 × 58 mm
- Size: 5 (54mm)
- Block Type: Reverse Shackle
- No. of Sheaves: Double
- Bearing Type: Ball Bearing
- Sheave Size: 54mm x 17mm (2 1/8" x 5/8")
- Max rope diameter: 12mm (7/16")
- SWL: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
- Max rolling load (ball bearing blocks): 525kg (1157lbs)
- Article number: 626775BZ
- Packaging unit: Piece
- Supplier article code: N15220
- EAN code: 6095502745713
-
