SKU:
BP 626047Z
$ 44,29
1-2 weeks delivery time
-
+
The Barton N05090 Size 5 pulley block has a 54mm plain bearing sheave, double tang fitting, and a robust stainless steel frame, designed for larger yachts. Its safe working load is 750kg, with a break load of 1500kg.
- Description
- Ask a Question
-

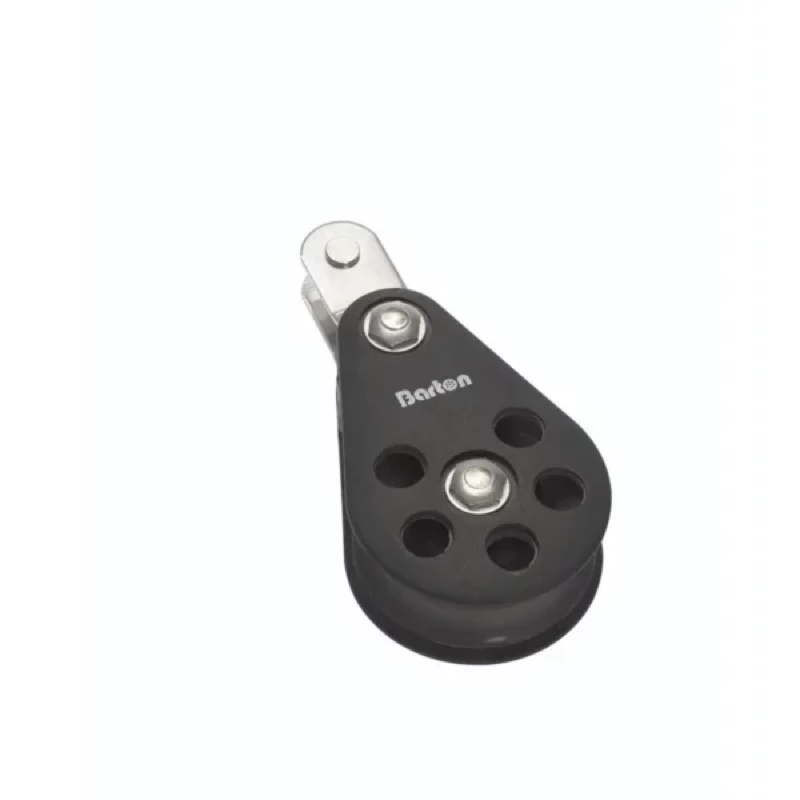

Barton N05090 - Size 5 54mm Plain Bearing Pulley Block Single Double Tang
The Size 5 block with a 54mm (2 1/8") sheave is engineered for larger cruising and racing yachts. Featuring high-grade moulded side plates that are through-bolted and riveted, this rugged block provides strength and security. All load-bearing components and the frame are made from marine grade 316 stainless steel. It is also compatible with Barton’s ball bearing mainsheet traveller system. This version includes plain bearings, a single sheave, and a double tang fitting.
- Weight: 160 g
- Dimensions: 114 × 58 × 37 mm
- Size: 5 (54mm)
- Block Type: Double Tang
- No. of Sheaves: Single
- Bearing Type: Plain
- Sheave Size: 54mm x 17mm (2 1/8" x 5/8")
- Max rope diameter: 12mm (7/16")
- SWL: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
- Max rolling load (ball bearing blocks): 525kg (1157lbs)
- Item number: 626047Z
- Packaging unit: Piece
- Supplier article code: N05090
- EAN code: 5035088081219
-
