The Barton 20900 - Mainsheet System Size 1 features a 1.4 m long, 20 mm wide track and is suitable for boats up to 8.5 metres. It includes end fittings, plastic caps, and a traveller car, using a 2:1 purchase system and precision Delrin ball technology for smooth operation.
- Description
- Ask a Question
-

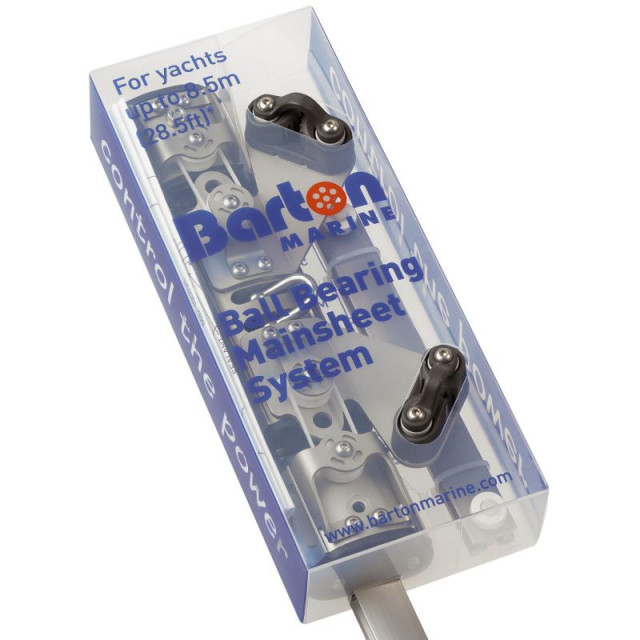

Barton 20900 - Mainsheet System Size 1 2:1 Cleats 70deg On End Fittings 1.4M Track 20mm
This mainsheet system is designed for efficient and reliable performance on boats up to 8.5 metres in length, featuring marine-grade components and a compact 20mm track.
- Item number: 148723
- Packaging unit: Piece
- Supplier article code: 20900

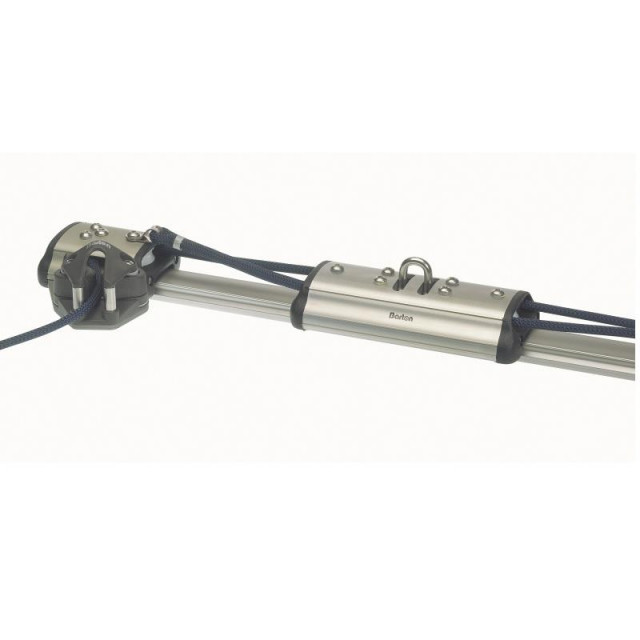

- Traveller car with single shackle take off
- Pair of end fittings
- Pair of plastic end caps
- Pilot track and fitting instruction included
- Recirculating precision ground Delrin ball system
- Track width: 20 mm
- Track length: 1.4 m
- Maximum boat size: 8.5 metres
- Maximum control line diameter: 6 mm
- Safe working load: 500 Kgs
- Fastenings diameter: 5 mm
- Sliding bolt track allows retrofitting
- Extruded from marine grade aluminium with 'Spectro' grey anodised finish
- Size 1 – 2:1 purchase system
- Important: Not suitable for open span applications
-
