SKU:
ALP 518011Y
$ 294,82
1-2 weeks delivery time
-
+
This steel half-coupling fits 35mm shafts and includes a centering ring with a 65mm center diameter, a 100mm pitch circle, and four 12.5mm holes for secure attachment, suitable as a Yanmar reference part.
- Description
- Ask a Question
-
Allpa Steel Half-Coupling With Centering Ring, Ø35mm Shaft, Centre Ø65mm, Pitch Ø100mm, 4x Ø12,5mm (Kanzaki/Yanmar)
This steel half-coupling is designed for shafts with a diameter of 35mm and features a centering ring with a center diameter of 65mm. It has a pitch circle diameter of 100mm and includes 4 holes of 12.5mm diameter for secure attachment. Suitable as a Yanmar reference part.

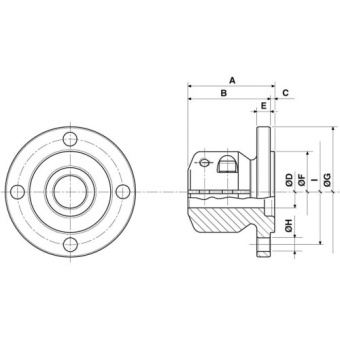

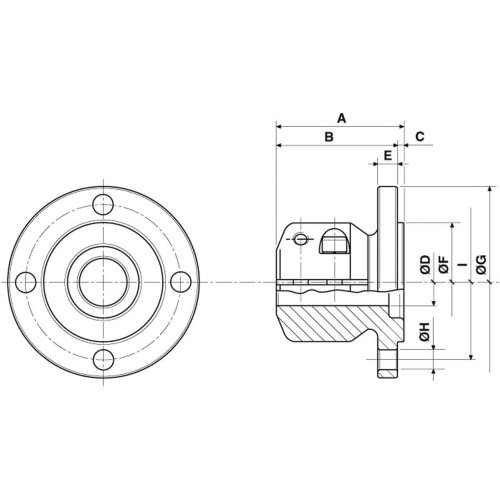

- Article number: 518011Y
- Dimension A: 93mm
- Dimension B: 90mm
- Dimension C: 3mm
- Dimension D: 35mm (shaft diameter)
- Dimension E: 11.8mm
- Dimension F: 65mm (center diameter)
- Dimension G: 127mm
- Dimension H: 12.5mm (hole diameter)
- Dimension I: 100mm (pitch diameter)
- Material: Steel
- Ref.: Yanmar
- EAN number: 8719182089766
-
