SKU:
ALP 5180095
$ 233,06
1-2 weeks delivery time
-
+
This version of the steel half-coupling has a 30mm shaft, 63.5mm centre, and four 10.5mm diameter holes, designed for applications with an 82.5mm pitch.
- Description
- Ask a Question
-
Allpa Steel Half-Coupling With Centering Ring, Ø30mm Shaft, Centre Ø63,5mm, Pitch Ø82,5mm, 4x Ø10,5mm
This version of the steel half-coupling includes a 30mm shaft, 63.5mm center, and four 10.5mm diameter holes, designed for applications with an 82.5mm pitch.

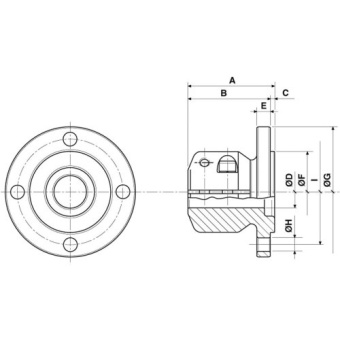

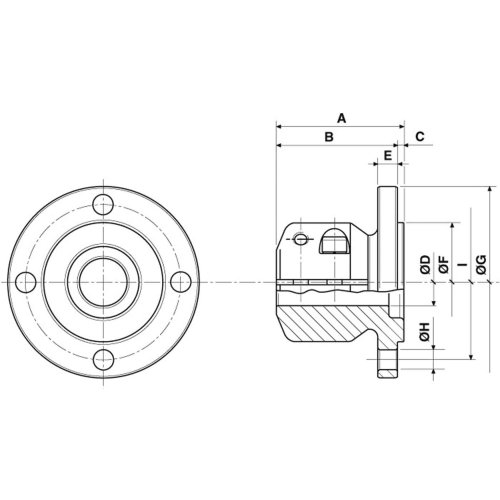

- Article number: 5180095
- Dimension A: 68mm
- Dimension B: 65mm
- Dimension C: 3mm
- Dimension D: 30mm
- Dimension E: 10,5mm
- Dimension F: 63,5mm
- Dimension G: 102mm
- Dimension H: 10,5mm
- Dimension I: 82,5mm
- Material: Steel
- Ref.: 4"
- EAN number: 8719182089766
-
