SKU:
ALP 518009
$ 230,57
1-2 weeks delivery time
-
+
This version includes four 10.5mm mounting holes, maintaining the 25mm shaft and 63.5mm centre diameter with an 82.5mm pitch, ideal for fittings referenced as 4 inches.
- Description
- Ask a Question
-
Allpa Steel Half-Coupling With Centering Ring, Ø25mm Shaft, Centre Ø63,5mm, Pitch Ø82,5mm, 4x Ø10,5mm
This version includes four mounting holes of 10.5mm diameter and shares the same shaft and centre dimensions of 25mm and 63.5mm respectively, with a pitch diameter of 82.5mm, ideal for 4" reference fittings.

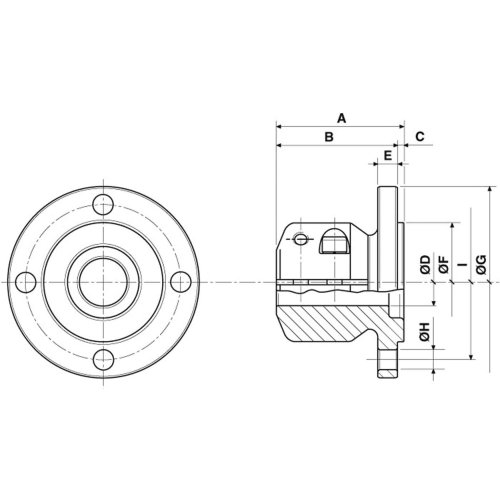

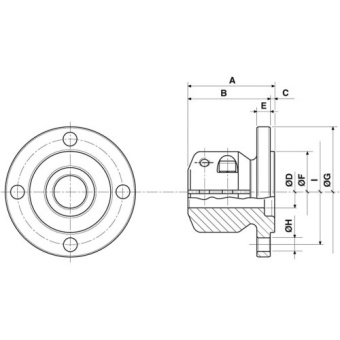

- Article number: 518009
- Dimension A: 68mm
- Dimension B: 65mm
- Dimension C: 3mm
- Dimension D: 25mm (shaft diameter)
- Dimension E: 10.5mm
- Dimension F: 63.5mm (centre diameter)
- Dimension G: 102mm
- Dimension H: 10.5mm
- Dimension I: 82.5mm (pitch diameter)
- Material: Steel
- Reference: 4"
- EAN number: 8719182089766
-
