SKU:
ALP 518009Y
$ 223,72
1-2 weeks delivery time
-
+
This Allpa steel half-coupling with centering ring is designed for Yanmar engines with a 25mm shaft and 50mm centre diameter, featuring four mounting holes of 10.5mm diameter and a pitch diameter of 78mm, suitable for compact inboard installations.
- Description
- Ask a Question
-
Allpa Steel Half-Coupling With Centering Ring, Ø25mm Shaft, Centre Ø50mm, Pitch Ø78mm, 4x Ø10,5mm (Yanmar)
This variant of the steel half-coupling also suits Yanmar engines with a 25mm shaft and 50mm centre, but includes four holes of Ø10.5mm for mounting. Its compact design fits inboard configurations with a pitch diameter of 78mm.
- Article number: 518009Y
- EAN number: 8719182089766
- Installation: Inboard

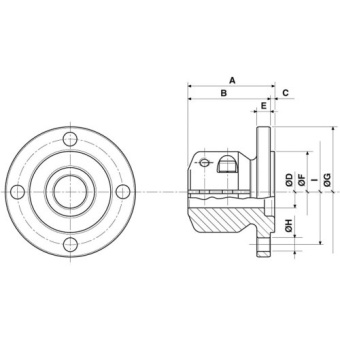

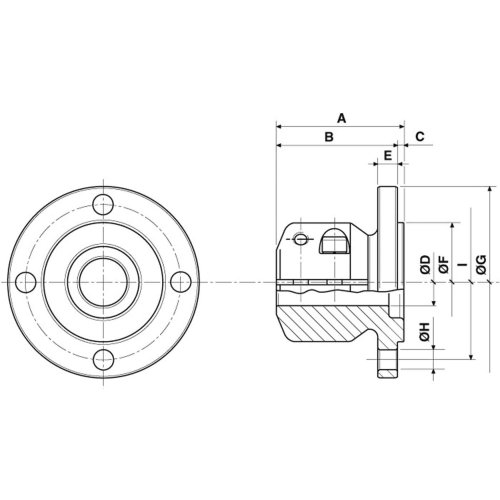

- Dimension A: 70mm
- Dimension B: 67mm
- Dimension C: 3mm
- Dimension D: 25mm (shaft diameter)
- Dimension E: 10.5mm
- Dimension F: 50mm (centre diameter)
- Dimension G: 100mm
- Dimension H: 10.5mm
- Dimension I: 78mm (pitch diameter)
- Material: Steel
- Reference: Yanmar
-
