SKU:
ALP 518008
$ 459,10
1-2 weeks delivery time
-
+
Made for a 40mm shaft, this bronze half-coupling with centering ring includes a 63.5mm center diameter, 108mm pitch, and four holes measuring 11.5mm for precise connection.
- Description
- Ask a Question
-
Allpa Bronze Half-Coupling With Centering Ring, Ø40mm Shaft, Centre Ø63,5mm, Pitch Ø108mm, 4x Ø11,5mm
This bronze half-coupling is designed for shafts with a diameter of 40mm and includes a centering ring for precise alignment. It features a center diameter of 63.5mm and a pitch circle diameter of 108mm with four holes sized at 11.5mm.

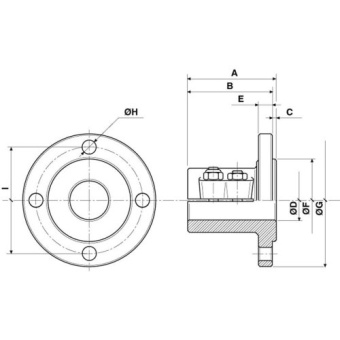

- Article number: 518008
- Dimension A: 68mm
- Dimension B: 65mm
- Dimension C: 3mm
- Dimension D: 40mm
- Dimension E: 11mm
- Dimension F: 63,5mm
- Dimension G: 127mm
- Dimension H: 11,5mm
- Dimension I: 108mm
- Material: Bronze
- Ref.: 5"
-
