SKU:
ALP 518006
$ 358,32
1-2 weeks delivery time
-
+
The Allpa bronze half-coupling with centering ring for a 30mm shaft features a center diameter of 63.5mm, pitch 82.5mm, and four holes 10.5mm in diameter, ensuring accurate shaft alignment.
- Description
- Ask a Question
-
Allpa Bronze Half-Coupling With Centering Ring, Ø30mm Shaft, Centre Ø63,5mm, Pitch Ø82,5mm, 4x Ø10,5mm
This model features a bronze half-coupling with a centering ring, designed for a 30mm shaft. The center diameter is 63.5mm, pitch 82.5mm, with four holes each 10.5mm in diameter.

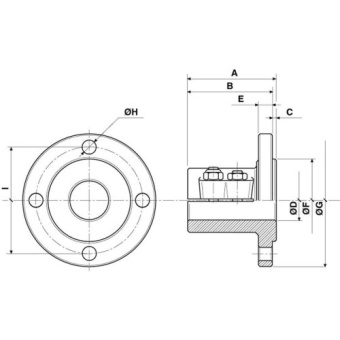

- Article number: 518006
- Dimension A: 68mm
- Dimension B: 65mm
- Dimension C: 3mm
- Dimension D: 30mm
- Dimension E: 10mm
- Dimension F: 63,5mm
- Dimension G: 102mm
- Dimension H: 10,5mm
- Dimension I: 82,5mm
- Material: Bronze
- Reference: 4"
-
